How do I update the firmware of my Octopus

Anas Hawwari avatar
Written by Anas Hawwari
Updated over a week ago

DISCLAIMER: The Octopus Gateway is no longer available through AiElements – please contact our support team (support@ai-elements.com) about connecting your Aquametro CONTOIL VZO 4 / 8 liquid fuel meters to the AiElements energy management platform through another gateway device (Carlo Gavazzi, Schneider, Accuenergy and more) available though AiElements.

Download and locate your AiElements Octopus Tool software package (zip file). Unzip the file and open the folder.

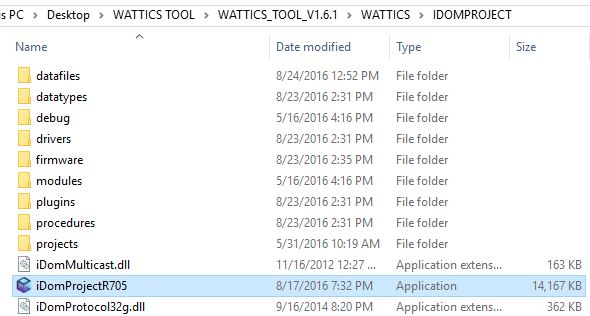

Go to the IDOMPROJECT subfolder (or Sys subfolder) and double click on the iDomProject executable file to run the Firmware Updater software.

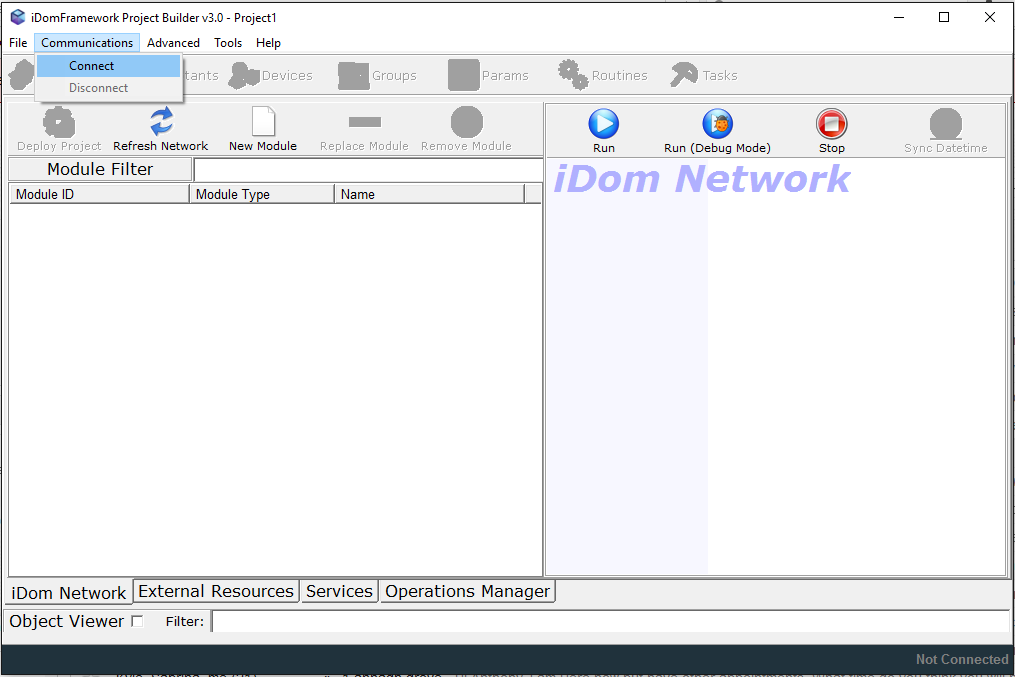

Click on “Communications” > “Connect”

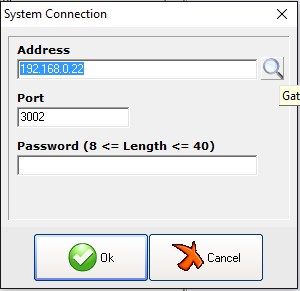

In the pop up window, click on the icon “Search” (magnificent glass) to go to the search Window.

In the next window tick DHCP and click in the “Search” button to find all the Octopus gateways in the network. Select the Octopus gateway you want to update and click “Ok” in this window and in the next.

Click on the “Refresh Network” button to show the Octopus you are connected to.

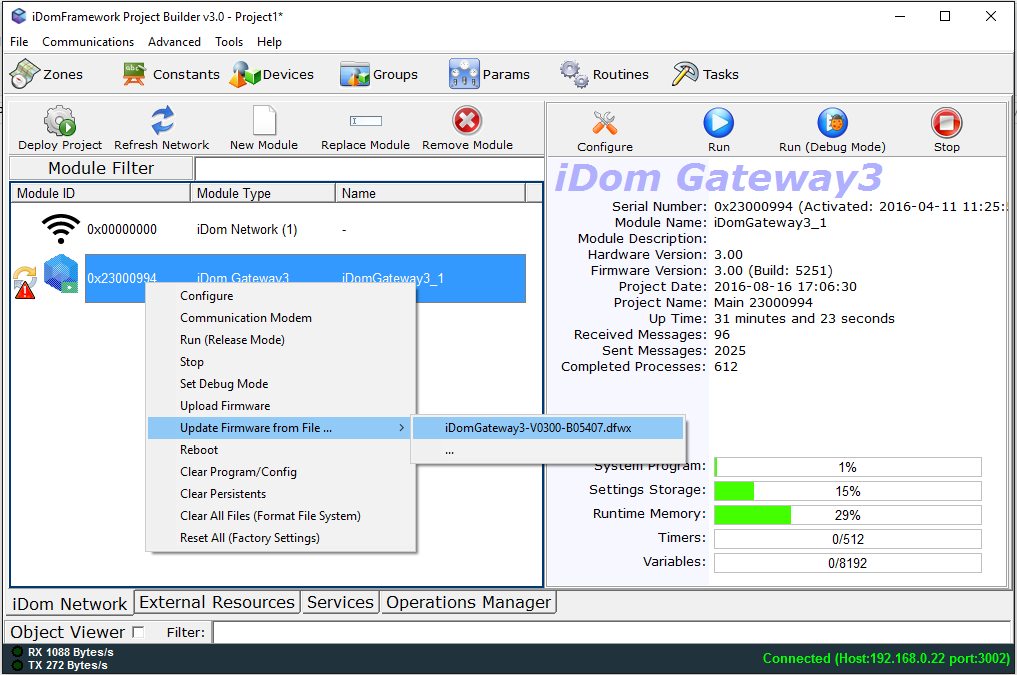

Select the Octopus gateway and right click on it. Select first “Clear Program/Config”m and then select the gateway again with a right click and choose “Update Firmware from File” and select the firmware file shown.

Follow the update progress on the tab at the bottom and you can close the application when the update is finished (100%). Your Octopus is now updated to the latest firmware.
