Are you ready for energy savings? Enable our cloud-based energy analytics and dashboard for
your Rainforest Eagle Energy
Gateway, to discover, measure and verify savings in the premises you manage.
It is assumed that the Eagle Energy Gateway already collects data from your meter(s). If not, read and understand Rainforest manuals for installing, operating, or maintaining your Eagle Energy Gateway. Installation and program procedures must be carried out and inspected by qualified personnel. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding potential hazards when working with this product.
Step 1: Register your data logger and data points with AiElements
Register your Eagle Energy gateway

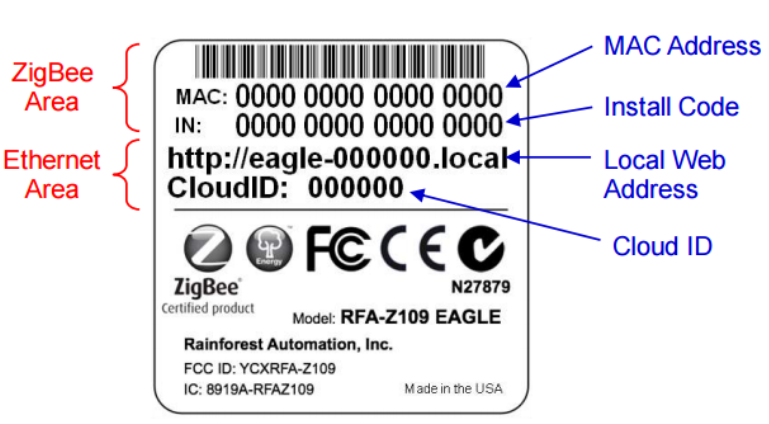

You will need to provide the MAC address of your Eagle Gateway, which you can find
underneath the device.
One of our agents will contact you to set up your monthly subscription fee and give you
access to the AiElements dashboard.
Step 2: Configure your Eagle Gateway
Access your Eagle’s user interface via rainforestcloud.com (or via the .local web address found underneath the device). Enter your credentials to access the Web Viewer and then go to Settings.

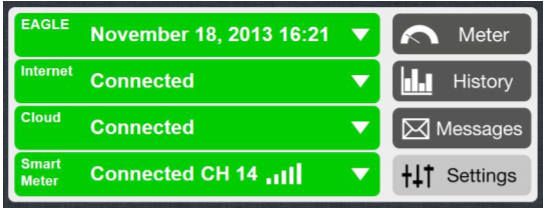

You are now ready to set up your Eagle Gateway to send data to AiElements. Expand the Cloud status
bar to bring up the Cloud sub-page.
If AiElements appears as a Provider, please select it from the drop-down menu.
Otherwise, add AiElements as a provider through the “add cloud” + icon at the bottom left. When prompted, please enter the information below:
-
Provider: AiElements Ltd
Click “Add Cloud” button to save AiElements as your new Cloud Provider.
Finally, click on “Set Cloud” to start data upload to AiElements. Your data will now be sent to AiElements, log in to your dashboard and get started!
You don’t have yet a Rainforest Eagle Energy Gateway?
Contact us if you would like to receive technical and pricing
information. The Rainforest gateway reads energy measurements from your ZigBee Smart meter, and pushes
interval energy use data to AiElements via your Ethernet or WiFi network. You must check that the
utility in your area supports the Rainforest Eagle before enabling AiElements.
